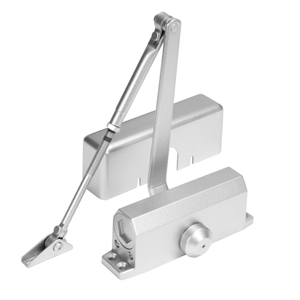

500 SERIES Door Closer
UL listed{UL file no.R15839},CE Certification{Number:0359-CPD-0308}500,000Cycles Guaranteed In EnduranceTWO separate valves adjustable closing & latching speedWork Temperature -30°C To 30°COptional Built-In HOLD OPEN type:501D 502D 503DUniversal Application:Standard,Tob-Jambparallel Arm installationOptional items:D: Built in HOLD Open typeC: Decorative P.V.C cover for 502,503504 type,
| Type | Dimension(mm) | Door width(mm) | Suit Door Weight(Kg) | ||||
| 501 | 179 | 162 | 22 | 42 | 62.5 | < 750 | 15-30 |
| 502 | 186 | 168 | 19 | 44.5 | 67 | 850 | 25-45 |
| 503 | 223 | 206 | 19 | 44.5 | 72 | 950 | 40-65 |
| 504 | 248 | 230 | 19 | 44.5 | 72 | 1100 | 60-85 |
| 505 | 248 | 230 | 19 | 44.5 | 72 | 1250 | 80-120 |
